MULTI-FUNCTIONAL VALVE RADIATOR

High power and enormous flexibility regarding control.
Integrated valve technology with a factory-adjusted k_v-setting.

APPLICATIONS:
Home Heating/Cooling and HVAC

Dimensions & Heat Outputs

Radiator power data in watts, in accordance with DIN EN 442 at (75/65/20) - 75℃ Flow Temperature, 65℃ Return Temperature and 20℃ Room Temperature.

Dimensions: Height x Width (mm)

Full list of dimensions and outputs can be found in product downloads.

MFV11300060: 300 x 0600 = 339 Watts
MFV11300080: 300 x 0800 = 452 Watts
MFV11300100: 300 x 1000 = 565 Watts
MFV11400060: 400 x 0600 = 425 Watts
MFV11400080: 400 x 0800 = 566 Watts
MFV11400100: 400 x 1000 = 708 Watts
MFV11600040: 600 x 0400 = 376 Watts
MFV11600060: 600 x 0600 = 563 Watts
MFV11600080: 600 x 0800 = 751 Watts
MFV11600100: 600 x 1000 = 939 Watts
MFV11600120: 600 x 1200 = 1127 Watts
MFV11600140: 600 x 1400 = 1315 Watts
MFV11600160: 600 x 1600 = 1502 Watts
MFV11900060: 900 x 0600 = 775 Watts
MFV11900080: 900 x 0800 = 1034 Watts
MFV11900100: 900 x 1000 = 1292 Watts

MFV21300060: 300 x 0600 = 503 Watts
MFV21300080: 300 x 0800 = 670 Watts
MFV21300100: 300 x 1000 = 838 Watts
MFV21400060: 400 x 0600 = 628 Watts
MFV21400080: 400 x 0800 = 838 Watts
MFV21400100: 400 x 1000 = 1047 Watts
MFV21600040: 600 x 0400 = 543 Watts
MFV21600060: 600 x 0600 = 814 Watts
MFV21600080: 600 x 0800 = 1086 Watts
MFV21600100: 600 x 1000 = 1357 Watts
MFV21600120: 600 x 1200 = 1628 Watts
MFV21600140: 600 x 1400 = 1900 Watts
MFV21600160: 600 x 1600 = 2171 Watts
MFV21900060: 900 x 0600 = 1118 Watts
MFV21900080: 900 x 0800 = 1491 Watts
MFV21900100: 900 x 1000 = 1864 Watts

MFV22300060: 300 x 0600 = 657 Watts
MFV22300080: 300 x 0800 = 876 Watts
MFV22300100: 300 x 1000 = 1095 Watts
MFV22400060: 400 x 0600 = 814 Watts
MFV22400080: 400 x 0800 = 1086 Watts
MFV22400100: 400 x 1000 = 1357 Watts
MFV22600040: 600 x 0400 = 685 Watts
MFV22600060: 600 x 0600 = 1028 Watts
MFV22600080: 600 x 0800 = 1370 Watts
MFV22600100: 600 x 1000 = 1713 Watts
MFV22600120: 600 x 1200 = 2056 Watts
MFV22600140: 600 x 1400 = 2398 Watts
MFV22600160: 600 x 1600 = 2741 Watts
MFV22900060: 900 x 0600 = 1378 Watts
MFV22900080: 900 x 0800 = 1837 Watts
MFV22900100: 900 x 1000 = 2296 Watts

MFV33300060: 300 x 0600 = 937 Watts
MFV33300080: 300 x 0800 = 1249 Watts
MFV33300100: 300 x 1000 = 1561 Watts
MFV33400060: 400 x 0600 = 1162 Watts
MFV33400080: 400 x 0800 = 1549 Watts
MFV33400100: 400 x 1000 = 1936 Watts
MFV33600040: 600 x 0400 = 981 Watts
MFV33600060: 600 x 0600 = 1472 Watts
MFV33600080: 600 x 0800 = 1962 Watts
MFV33600100: 600 x 1000 = 2453 Watts
MFV33600120: 600 x 1200 = 2944 Watts
MFV33600140: 600 x 1400 = 3434 Watts
MFV33600160: 600 x 1600 = 3925 Watts
MFV33900060: 900 x 0600 = 1933 Watts
MFV33900080: 900 x 0800 = 2577 Watts
MFV33900100: 900 x 1000 = 3221 Watts

PRODUCT OVERVIEW

TECHNICAL INFORMATION

SPECIFICATION

COLOURS

IMAGES

DOWNLOADS

PRODUCT OVERVIEW

Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.

Type 11 KV

Single-layer with a convection sheet
Height	300	400	500	600	900
Length	up to 2400		up to 2600		up to 2000
Depth	61

Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections: 4 x internal thread G 1/2	Max. positive operating pressure: 10 bar
Test positive pressure: 13 bar	Max. operating temperature: 110 °C

Type 21 KV-S

Double-layer with one convection sheet
Height	300	400	500	600	900
Length	up to 2400		up to 3000		up to 2000
Depth	80

Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections: 4 x internal thread G 1/2	Max. positive operating pressure: 10 bar
Test positive pressure: 13 bar	Max. operating temperature: 110 °C

Type 22 KV

Double-layer with two convection sheets
Height	300	400	500	600	900
Length	up to 3000				up to 2000
Depth	105

Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections: 4 x internal thread G 1/2	Max. positive operating pressure: 10 bar
Test positive pressure: 13 bar	Max. operating temperature: 110 °C

Type 33 KV

Three-layers with three convection sheets
Height	300	400	500	600	900
Length	up to 3000	up to 2200			up to 2000
Depth	166

Steps: any overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections: 4 x internal thread G 1/2	Max. positive operating pressure: 10 bar
Test positive pressure: 13 bar	Max. operating temperature: 110 °C

TECHNICAL INFORMATION

Technical Information

The MULTIFUNCTIONAL VALVE RADIATOR with its welded valve unit is suitable for double-pipe as well as for single-pipe installations, using a onepipe manifold. Additionally, to the connection possibility at the bottom, the sophisticated design also offers connection possibilities, known from compact radiators, such as single-sided or two-sided connections.

The radiator is delivered ready for double-pipe installation, with a factory-adjusted kv-setting, appropriate to the radiator output.

For district heating installations with a big difference between water supply and return temperature, a steplessly adjustable valve element is available on request.

Connection Modes - Double-Pipe System

A) Single-sided connection
B) Connection both sides
C) Connection on top (Warning: Lower performance)
D) Single-sided connection

Flow	Vent plug
Return	Drain plug
Blank plug

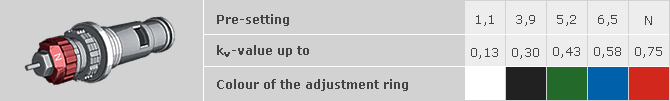

kv-value chart

Of course it is also possible to change the pre-adjusted valve setting when the equipment is operating at pressure.

Adjustment Tips for Built-in Valve

Setting Instructions:
VOGEL & NOOT valve radiators are factory-fitted for double-pipe installations. Each individual radiator is fitted with a pre-adjusted valve insert, appropriate to the radiator output. The preset kv-value is also marked in colour on the front surface.Please note: Should customised adjustments be required, the pre-set kv-values can be altered as needed.

Radiators are delivered with protective caps. After removing the protective cap (pos. A) the following thermostat heads can be fitted directly to the builtin valve (pos. B): “RA 2000”, “RAW” by Danfoss, “VK” by Heimeier, “D” by Herz, “thera DA” by MNG and “UNI XD” by Oventrop.

Single-Pipe Operation - Factory-Adjusted Built-in Valve

In single-pipe operation, setting the built-in valve on N.

The radiator will be delivered with a protective cap. After removing the protective cap (item A) the following thermostat heads can be installed directly onto the built-in valve (item B): „RA 2000“ and „RAW“ by Danfoss, „VK“ by Heimeier, „theraDA“ by MNG, as well as „UNI XD“ by Oventrop.

Caution: During the installation take care that the return element (2) has been installed at the water return and the supply element (1) at the water supply. Changing the built-in valve from the right- to the left-hand side can easily be done at any time.

SPECIFICATION

MULTIFUNCTIONAL VALVE RADIATOR with Brackets

Material & Surface
Made of cold-rolled sheet steel, in accordance with EN 442-1; a robust and stylish ﬂuting with ribs at 40 mm intervals; undercoating in accordance with DIN 55900 part 1, stoved at 190° C; the ﬁnish is an electrostatic powder coating, in accordance with DIN 55900 part 2, in standard colour 9016; stoving at an object temperature of 210° C.

Equipment
Fitted with an integrated valve set; designed for double-pipe and single-pipe systems with a single-pipe manifold; factory-installed built-in valve with pre-set kv-value adjusted to heat output; if needed, adjustable in the range 0.13 to 0.75. With single-pipe systems, the radiator proportion can be set from 30% to 50%. All models are ﬁtted with a protective cap for the built-in valve, welded suspension brackets on the back, a removable top cover and two closed side panels, a drain plug, a pivoting vent plug and a dummy plug, all of them sealed; the cover system complies with the former BAGUV regulations.

Assembly
Pre-installation ﬁtting is possible, using the ﬁtting template - 3/4“ (accessory), disassembling and assembling of the top cover by means of decor-clips (in standard colour 9016); quality and performance veriﬁ cation in accordance with EN 442; permanent monitoring of production process in accordance with EN-ISO 9001; triple packed (cardboard packaging, edge protection, shrink foil); suitable for manual or thermostatic control; connection of pipes made of copper, steel, plastic or alloy is possible.

Connection
4 x internal thread G 1/2“ and 2 x external thread G 3/4 “, bottom right (at special order at the bottom left)
