Climatefix

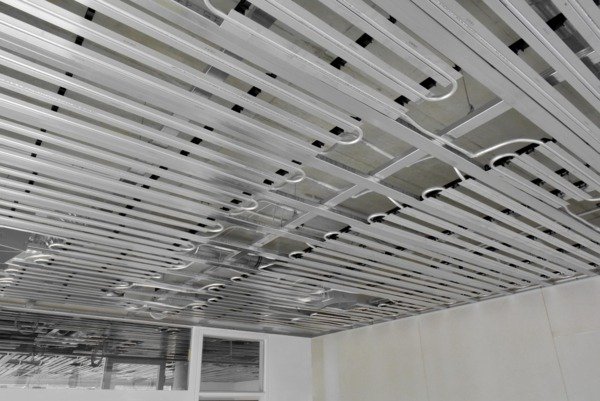

Due to the individual size adjustment, the modules can be used for all common ceiling constructions. The use of heat-conducting sheets guarantees optimum transition of the energy into the ceiling construction, ensuring even heating and/or cooling distribution within the ceiling and achieving maximum performance.

Advantages:
Separation between trades (Drywall constructor - Installer) Installer is responsible for the hydraulic work Drywall constructor is responsible for the dry construction work

• Clean separation of materials
• Cooling/heating looped pipes are not screwed to the drywall construction
• With directly bolted systems, noise can develop due to varying expansion of the materials (gypsum, metal)

Easy and fast installation thanks to prefabricated cooling loops High cooling performance through the use of aluminium heat-conducting profiles Standardised power output

• The installation distances of the heat conduction plates do not differ.
• The power output is not dependent on the installer or planner who defines the number of heat conduction plates per m².
• Thanks to a fixed defined distance between the heat conduction plates, a fixed defined sound absorption coefficient is also provided (aw = 0.6).
• Use of 16 x 2.0 mm standard pipe system in the cooling loops
• Use of our standard KELOX and CLIMATEFIX fitting programme
• Easy to repair by using standard pipes and fittings
• No interconnection required in the Tichelmann system
• Easy venting of the pipes
• No problems at the construction site, where different pipe circuits are mounted and the air cannot get out of the circles
• Large cooling circuits through the use of 16 x 2 mm pipes
• Flexibility through easy adaptation of the modules on the construction site
  Modules can be moved easily in the longitudinal direction and can thus be easily adapted to structural changes.
