Vogel & Noot vertical centrally connected radiator

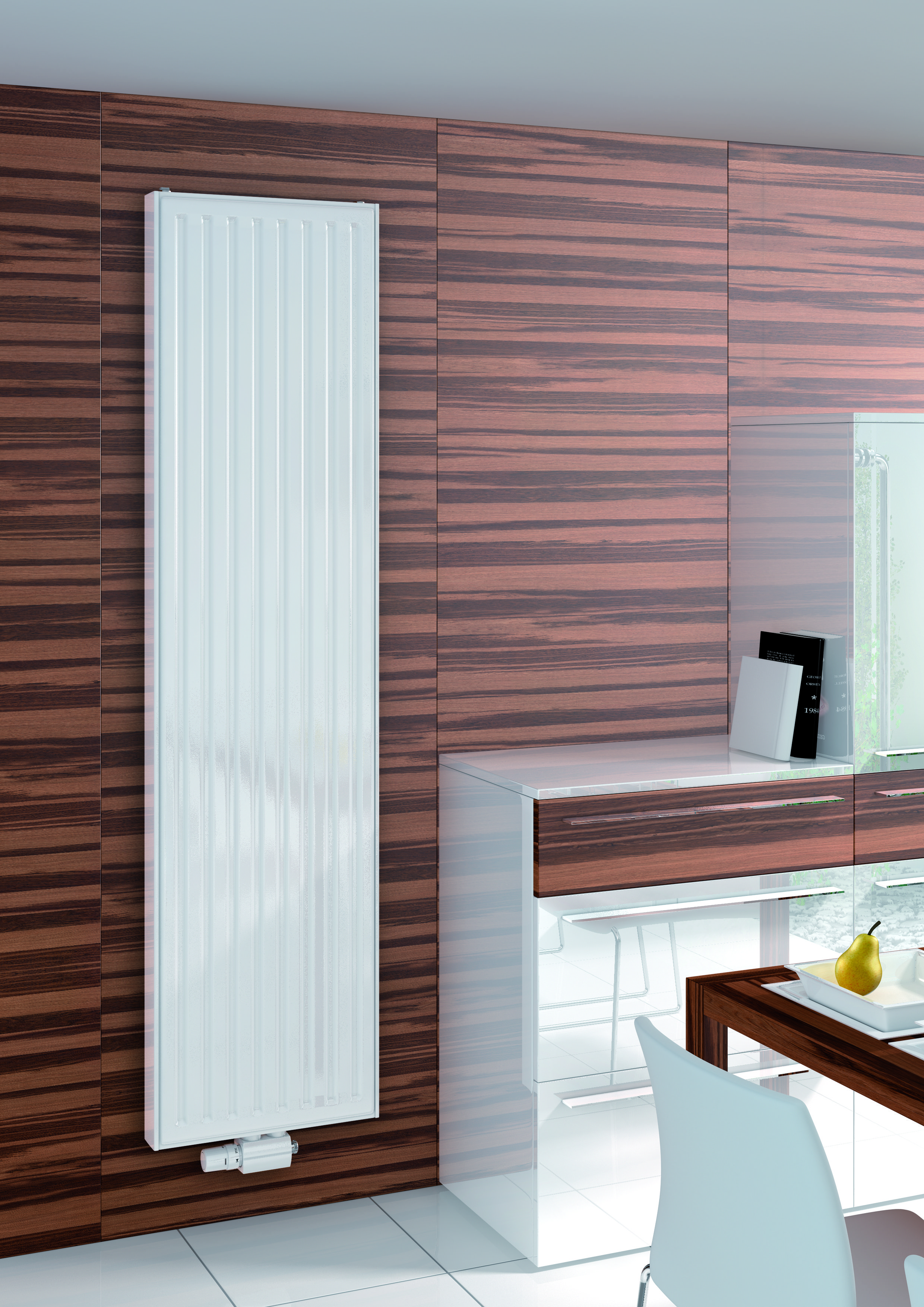

Centrally connected vertical radiator installation in kitchen

VERTICAL CENTRALLY CONNECTED RADIATORS

Vertical centrally connected radiators are efficient and ideal for small spaces. Their sleek design, high heating power and colour options make them a great addition to any home decoration.

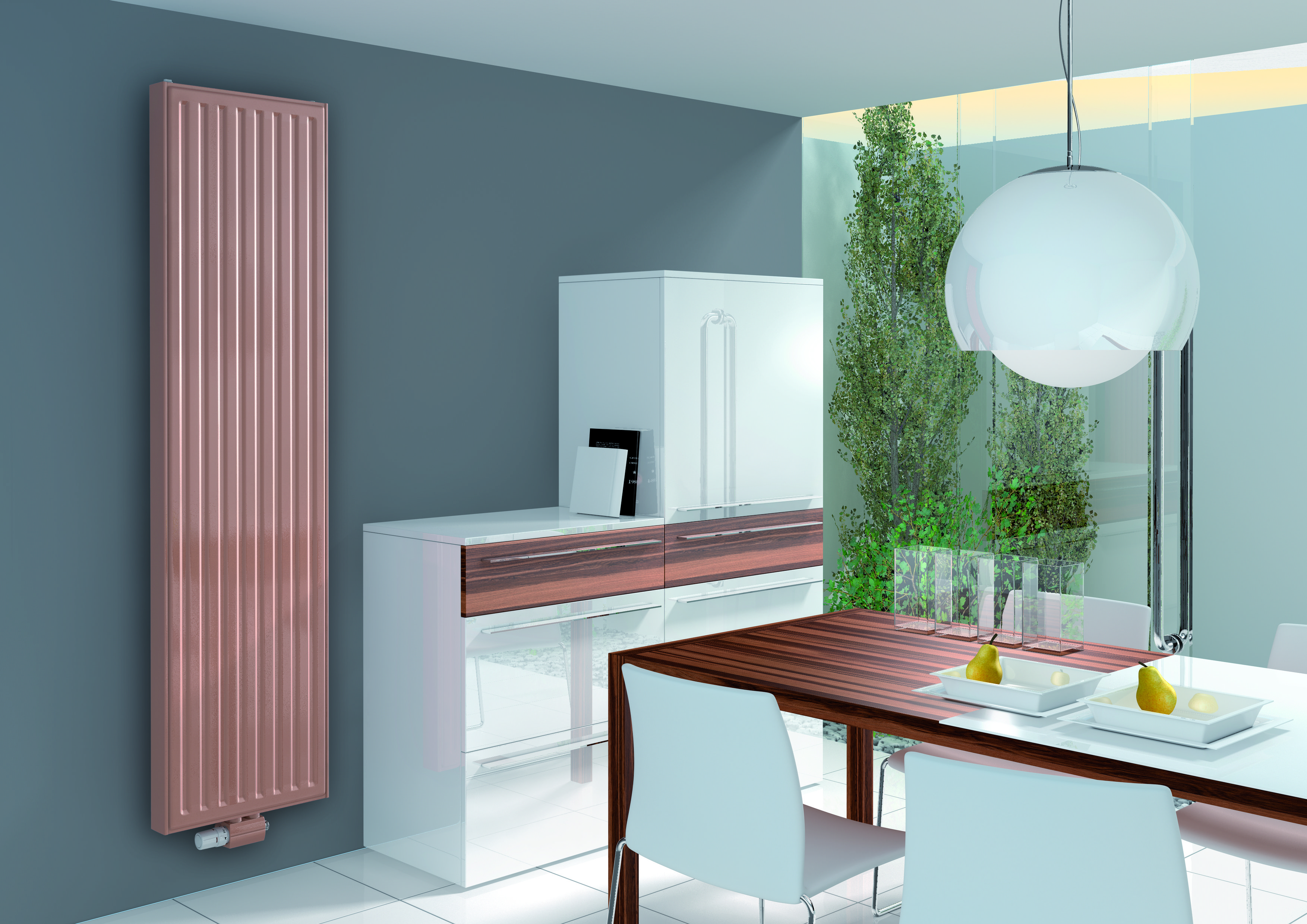

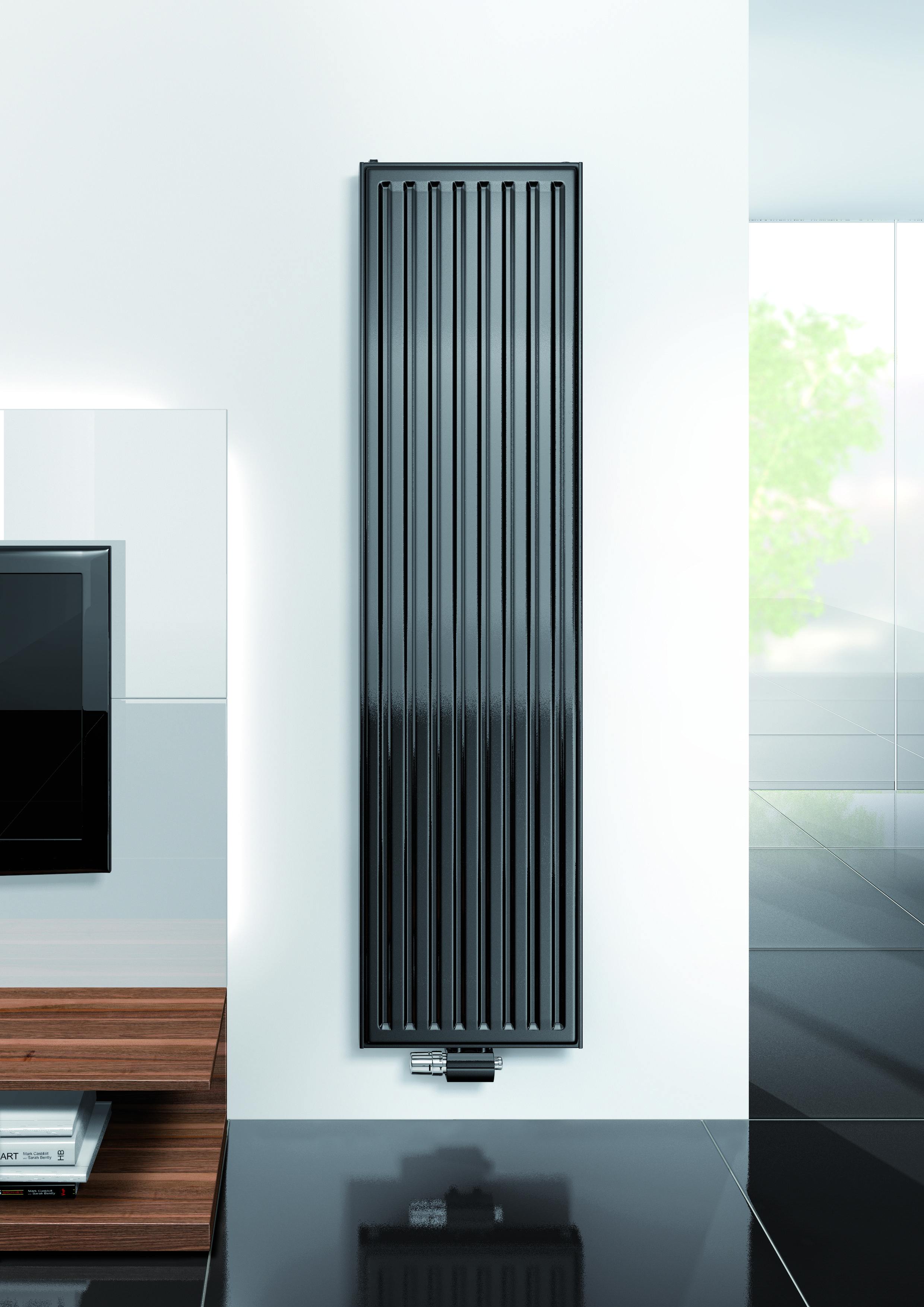

These radiators are perfect for keeping you warm and cosy during the colder months. Whether you prefer classic white or black, or a unique colour that reflects your personal style, these radiators offer a range of options. Stay warm and stylish this winter with vertical centrally connected radiators.

APPLICATIONS:
Home Heating/Cooling and HVAC

ENQUIRE ABOUT THIS PRODUCT

Radiator power data in watts, in accordance with DIN EN 442 at (75/65/20) - 75℃ Flow Temperature, 65℃ Return Temperature and 20℃ Room Temperature.

Dimensions: Height x Width (mm)

VCC101500045: 1500 x 0450 = 650 Watts
VCC101500060: 1500 x 0600 = 867 Watts
VCC101800045: 1800 x 0450 = 765 Watts
VCC101800060: 1800 x 0600 = 1020 Watts
VCC101800075: 1800 x 0750 = 1275 Watts
VCC101950045: 1950 x 0450 = 819 Watts
VCC101950060: 1950 x 0600 = 1092 Watts
VCC101950075: 1950 x 0750 = 1365 Watts
VCC102100045: 2100 x 0450 = 876 Watts
VCC102100060: 2100 x 0600 = 1168 Watts
VCC102100075: 2100 x 0750 = 1460 Watts
VCC201800030: 1800 x 0300 = 819 Watts
VCC201800045: 1800 x 0450 = 1229 Watts
VCC201800060: 1800 x 0600 = 1638 Watts
VCC201800075: 1800 x 0750 = 2048 Watts
VCC201950030: 1950 x 0300 = 877 Watts
VCC201950045: 1950 x 0450 = 1315 Watts
VCC201950060: 1950 x 0600 = 1753 Watts
VCC201950075: 1950 x 0750 = 2192 Watts
VCC202100030: 2100 x 0300 = 935 Watts
VCC202100045: 2100 x 0450 = 1403 Watts
VCC202100060: 2100 x 0600 = 1870 Watts
VCC202100075: 2100 x 0750 = 2338 Watts

VCC211800030: 1800 x 0300 = 963 Watts
VCC211800045: 1800 x 0450 = 1445 Watts
VCC211800060: 1800 x 0600 = 1926 Watts
VCC211800075: 1800 x 0750 = 2408 Watts
VCC211950030: 1950 x 0300 = 1020 Watts
VCC211950045: 1950 x 0450 = 1530 Watts
VCC211950060: 1950 x 0600 = 2040 Watts
VCC211950075: 1950 x 0750 = 2550 Watts
VCC212100030: 2100 x 0300 = 1081 Watts
VCC212100045: 2100 x 0450 = 1622 Watts
VCC212100060: 2100 x 0600 = 2162 Watts
VCC212100075: 2100 x 0750 = 2703 Watts

VCC221800030: 1800 x 0300 = 1132 Watts
VCC221800045: 1800 x 0450 = 1698 Watts
VCC221800060: 1800 x 0600 = 2264 Watts
VCC221950030: 1950 x 0300 = 1192 Watts
VCC221950045: 1950 x 0450 = 1788 Watts
VCC221950060: 1950 x 0600 = 2384 Watts
VCC221950075: 1950 x 0750 = 2980 Watts
VCC222100030: 2100 x 0300 = 1252 Watts
VCC222100045: 2100 x 0450 = 1877 Watts
VCC222100060: 2100 x 0600 = 2503 Watts
VCC222100075: 2100 x 0750 = 3129 Watts
VCC222300075: 2300 x 0750 = 3329 Watts
PRODUCT OVERVIEW

Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.

Type 10

Vertical VM TYPE 10Vertical VM TYPE 10

Height Height1500180019502100
Width Length450, 600 450, 600, 750
Depth Depth50
Connections Connections: 2 x G 1/2 I.G., lower edge in the centre and 4 x G 1/2 I.G. on the left andMax. positive operating pressure Max. positive operating pressure: 6 bar right side
8 bar Test positive pressure: 8 barMaximal operating temperature Max. operating temperature: 110 °C

Type 20

Vertical VM TYPE 20Vertical VM TYPE 20

Height Height180019502100
Width Length300, 450, 600, 750
Depth Depth81
Connections Connections: 2 x G 1/2 I.G., lower edge in the centre and 4 x G 1/2 I.G. on the left andMax. positive operating pressure Max. positive operating pressure: 6 bar right side
8 bar Test positive pressure: 8 barMaximal operating temperature Max. operating temperature: 110 °C

Type 21

Vertical VM TYPE 21Vertical VM TYPE 21

Height Height180019502100
Width Length300, 450, 600, 750
Depth Depth81
Connections Connections: 2 x G 1/2 I.G., lower edge in the centre and 4 x G 1/2 I.G. on the left andMax. positive operating pressure Max. positive operating pressure: 6 bar right side
8 bar Test positive pressure: 8 barMaximal operating temperature Max. operating temperature: 110 °C

Type 22

Vertical VM TYPE 22Vertical VM TYPE 22

Height Height1800195021002300
Width Length300, 450, 600 300, 450, 600, 750 750
Depth Depth106
Connections Connections: 2 x G 1/2 I.G., lower edge in the centre and 4 x G 1/2 I.G. on the left andMax. positive operating pressure Max. positive operating pressure: 6 bar right side
8 bar Test positive pressure: 8 barMaximal operating temperature Max. operating temperature: 110 °C
TECHNICAL INFORMATION
SPECIFICATIONS
COLOURS
IMAGES
