LASERLINE ARCHITECTURE BENCH

The Laserline architecture bench column radiator is not just a simple radiator, but a stylish addition to any room. With its innovative central connection technology, it offers unparalleled flexibility and ease of installation.

This means that you can create a customized heating solution that perfectly fits your needs and design preferences. Furthermore, this column radiator adds a touch of modernity and style to any space, making it a perfect choice for those who value both functionality and aesthetics.

Whether you are looking to upgrade your home's heating system or simply want to add some style to your living space, The Laserline architecture bench column radiator is the perfect choice.

ENQUIRE ABOUT THIS PRODUCT

Radiator power data in watts, in accordance with DIN EN 442 at (75/65/20) - 75℃ Flow Temperature, 65℃ Return Temperature and 20℃ Room Temperature.

Dimensions: Height x Width (mm)

6 COLUMNS:
LLA6C02001500: 200 x 1500 = 1411 Watts
LLA6C02001800: 200 x 1800 = 1696 Watts
LLA6C02002000: 200 x 2000 = 1886 Watts
LLA6C02002500: 200 x 2500 = 2362 Watts
LLA6C02002800: 200 x 2800 = 2648 Watts
LLA6C02501500: 250 x 1500 = 1742 Watts
LLA6C02501800: 250 x 1800 = 2097 Watts
LLA6C02502000: 250 x 2000 = 2334 Watts
LLA6C02502500: 250 x 2500 = 2929 Watts
LLA6C02502800: 250 x 2800 = 3287 Watts
LLA6C03001500: 300 x 1500 = 1934 Watts
LLA6C03001800: 300 x 1800 = 2337 Watts
LLA6C03002000: 300 x 2000 = 2606 Watts
LLA6C03002500: 300 x 2500 = 3285 Watts
LLA6C03002800: 300 x 2800 = 3695 Watts
LLA6C03501500: 350 x 1500 = 2204 Watts
LLA6C03501800: 350 x 1800 = 2670 Watts
LLA6C03502000: 350 x 2000 = 2982 Watts
LLA6C03502500: 350 x 2500 = 3770 Watts
LLA6C03502800: 350 x 2800 = 4247 Watts

PRODUCT OVERVIEW

Varying dimensions and different designs regarding the number of columns and elements lead to a wide range of models, suitable for different requirements.

Different Dimensions & Varying Models

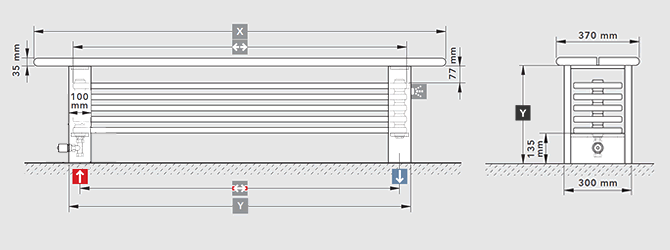

LASERLINE bench overview of models

Type61506180620062506280
Length  Bench18502150235028503150
height  Bench422 (4)*, 472 (5)*, 522 (6)*, 572 (7)*
Depth  Bench370
Length  Radiator1500 1800200025002800
Height  RadiatorBench-height minus 222
Depth  Radiator215

* elements per block

connections  Connections: Flow: 1 x 1/2“ internal thread, bottom left;
Return: 1 x 1/2" internal thread, bottom right

maximum operating pressure

  Max. positive operating pressure: 10 bar

maximum operatingpressure

  Max. operating temperature: 110 °C
