TARA

TARA DESIGN RADIATOR

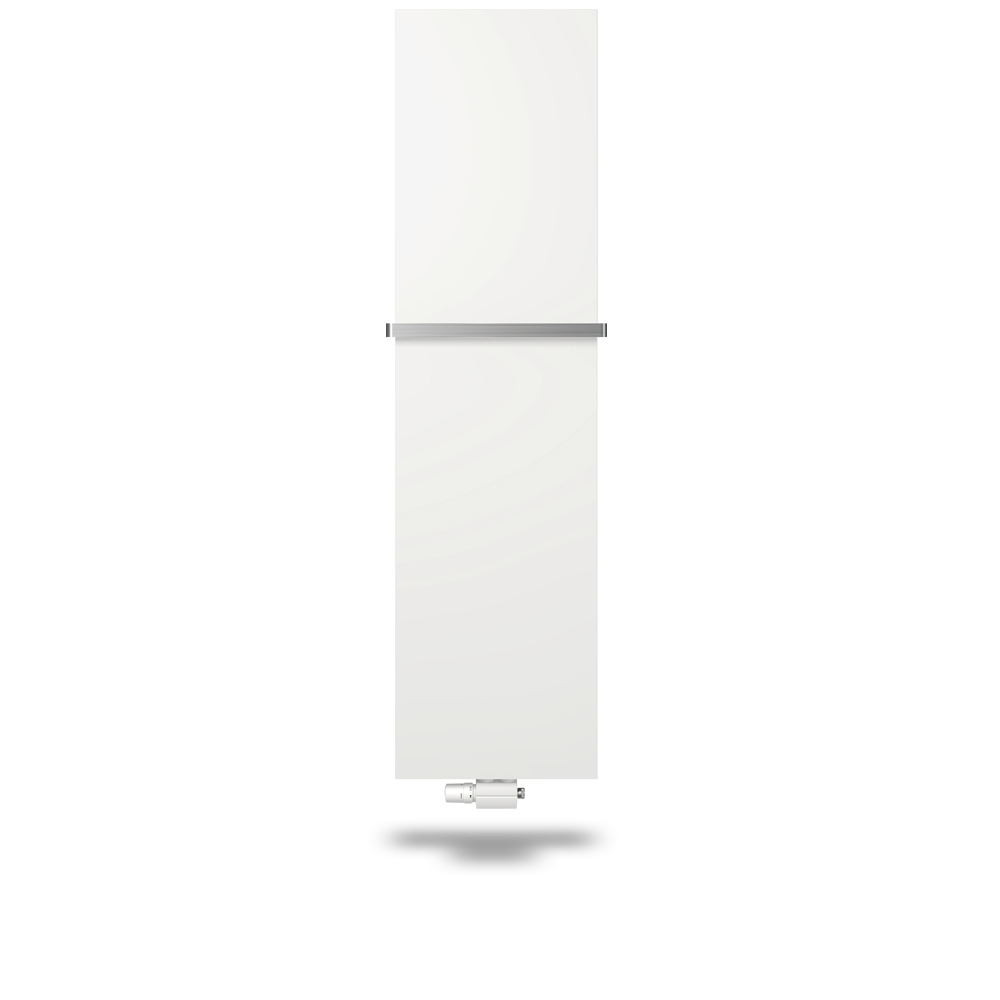

These design radiators are a vertical panel radiator. It has a large, even front with beautifully designed straight lateral edges. The framed front surface is galvanised on both sides. Standard model in white RAL 9016. Also available in other RAL and sanitary colours for an additional charge.

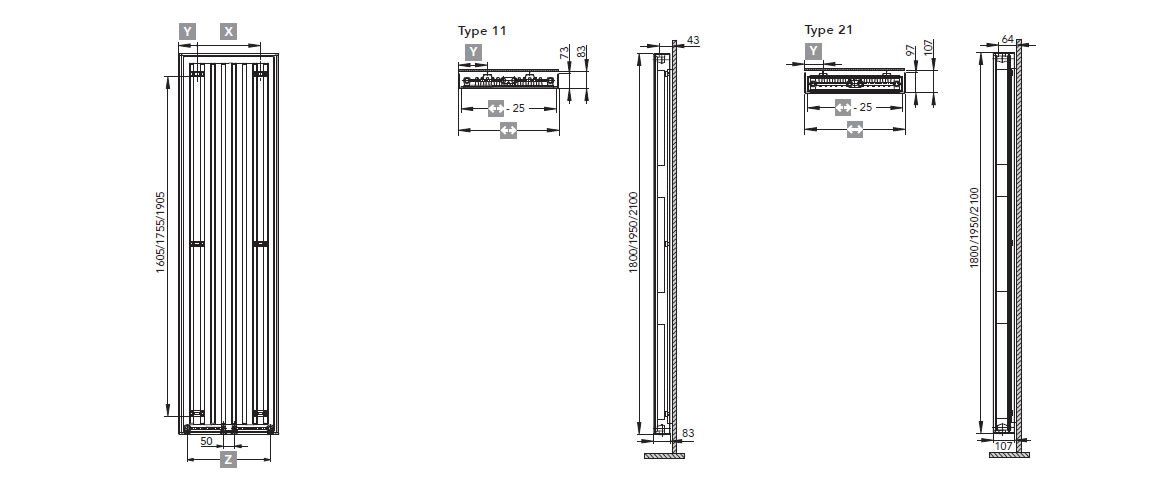

• Height:
  • Type 11 (design depth 73mm): 1800, 1950 or 2100 mm
  • Type 21 (design depth 97mm): 1800, 1950 or 2100 mm
• Length: 300, 450, 600 or 750 mm
• Connection:
  • Convenient connection through a standard centred connection fitting 2x G 1/2" IG (50 mm) plus 4x G1/2” IG, including blind plug and vent plug.
  • If the lateral (bottom) connections are used, the flow and return flow connections of the radiator are connected from below at the 1/2" IG connection fittings.
    Connection fittings are not included in the radiator.
• Mounting: 6 lugs welded to the back for installation with angular rails. Comes with a safety catch. Accessory kit with screws and dowels.
