FATALA-VM SPA

 Connection Examples

Connections: 3 x internal thread G 1/2 and 3 x internal thread G 1/4 Max. positive operating pressure: 10 bar Max. operating temperature: 110 °C Flow Return Vent plug Electric connection

Accessory: PTC Electric Heating Element FATALA SPA radiators fitted with an electric heating element can also be used at times when the regular heating system is switched off.It is absolutely necessary to take account of the power-ratings assigned to the electric heating elements. Basic Standard Accessories (Included): • A pivotable vent plug, G 1/4 and two dummy plugs, G 1/4, as well as a dummy plug, G 1/2, nickel-plated brass, self-sealing • A wall mounting set matching the radiator colour • Fitting aid • Instruction sheet

Vertical Dimensions [mm]

Horizontal Dimensions [mm]

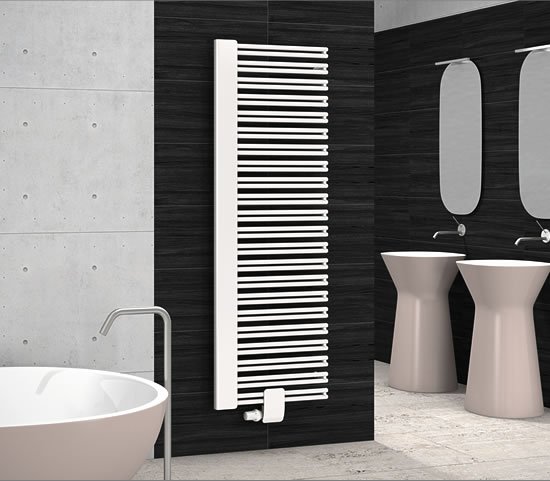

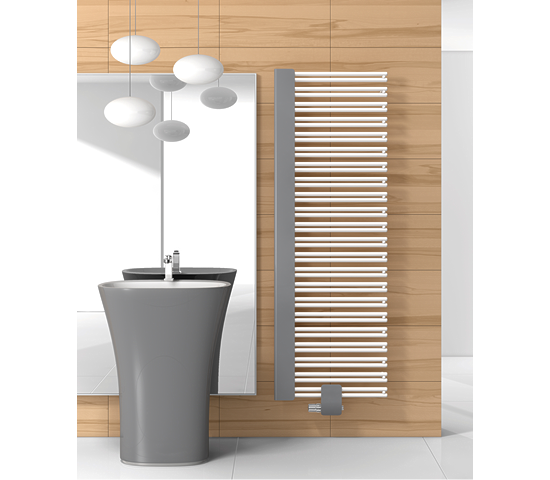

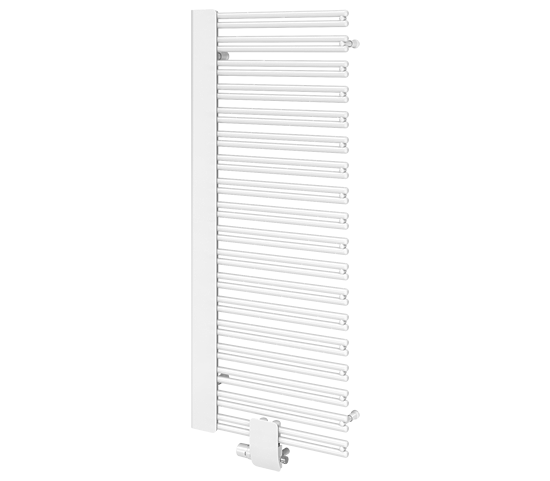

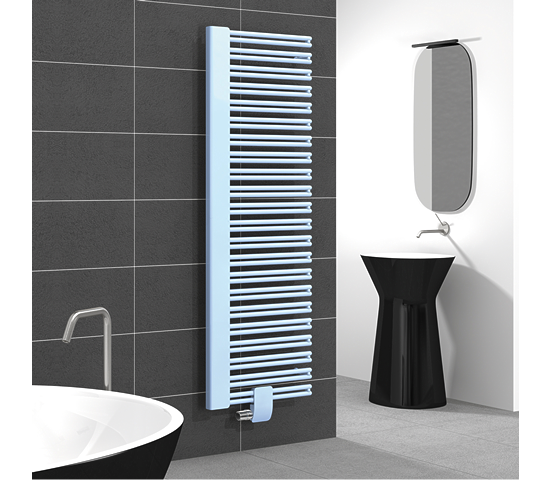

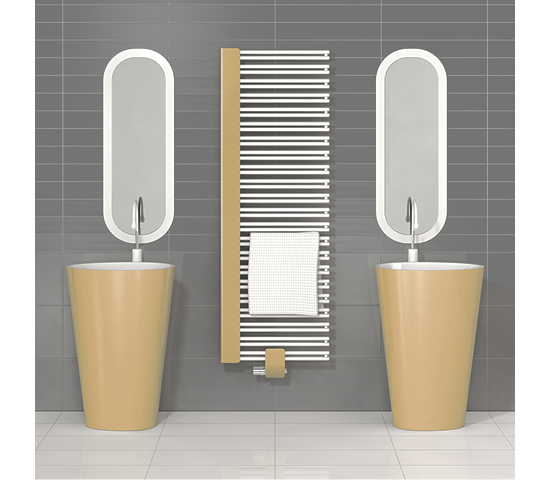

FATALA SPA DESIGN RADIATOR

These design radiators consist of circular or flat steel precision heating and assembly-pipes with pressure-resistant welding connections (no visible weld seams). All pipe ends sealed by means of special friction welding. Available as standard models or valve models. The maximum positive operating pressure is 10 bar, the testing positive pressure is 13 bar. The maximum operating temperature is 110°C.  Delivered with dummy and vent plugs (the valve designs are factory-sealed), and a wall mounting set matching the radiator colour. Option of installing an electrical heating element.

Performance verification in accordance with DIN EN 442 and OENORM (Austrian standard) EN 442.

• Dimensions:
  • Height: 1204, 1444 or 1764 mm
  • Length: 505, 605 or 755 mm
  • Depth (wall clearance included): 102 - 114 mm
• Connection: 3 x internal thread G 1/2" and 3 x internal thread G 1/4" (for vent and drain plugs)
• Coating:
  • Double coat painted in accordance with DIN 55900, suitable for bathroom units, prime coat with top-quality electrophoretic coating, finished with electrostatic powder coating, or electroplated surface
  • Finish: with electrostatic powder coating, or electroplated surface in your choice out of 71 different colours
