CAVALLY-VM

Connection Examples

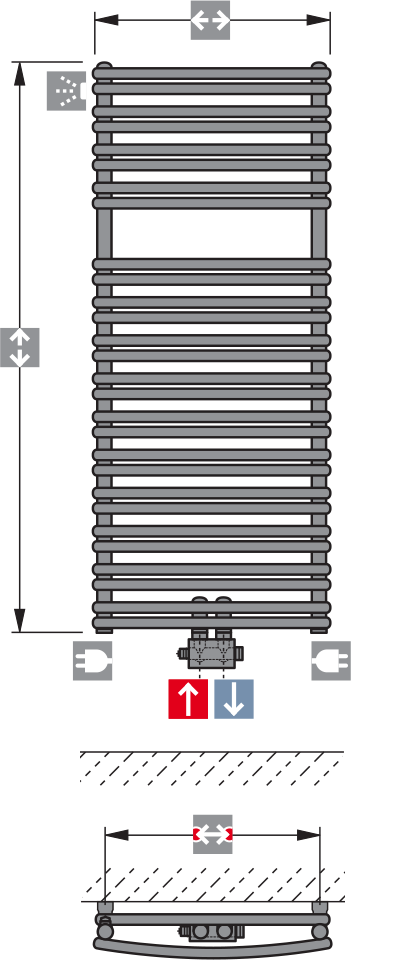

Flow Return Vent plug Electric connection Boss spacing Connections: 2 x external thread G 3/4 (for valve connection set), 2 x internal thread G 1/2, and 1 x internal thread G 1/4 (for vent plug) Test overpressure: 13 bar Max. positive operating pressure: 10 bar Max. operating temperature: 110 °C

Accessory: PTC Electric Heating Element CAVALLY-VM radiators fitted with an electric heating element can also be used at times when the regular heating system is switched off.It is absolutely necessary to take account of the power-ratings assigned to the electric heating elements. Basic Standard Accessories (Included): • A pivotable vent plug, G 1/4, and two dummy plugs, G 1/2, nickel-plated brass, self-sealing, factory-sealed • A valve connection set with angled two-pipe design • Covering rosette in matching radiator colour • Wall fastening set matching the radiator colour • Fitting aid • Instruction sheet

Dimensions [mm]

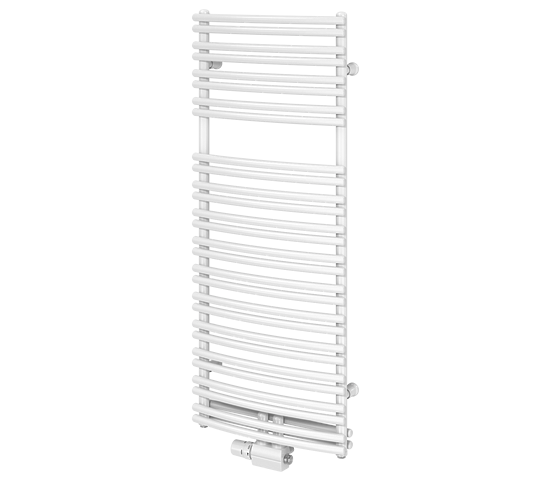

DESIGN RADIATORS CAVALLY-VM

These design radiators consist of circular or flat steel precision heating and assembly pipes with pressure-resistant welding connections (no visible weld seams). All pipe ends sealed by means of special friction welding. Available as standard models or valve models, suitable for double-pipe installations and single-pipe installations, using a one-pipe manifold; with double-pipe installations, adjustable K (supply) factor from 0.13 to 0.75; with single-pipe installations, adjustment of the radiator’s proportion from 30% to 50%; equipped with a factory-installed valve element and a protective cap. With the CAVALLY-VM an angled connection set with a covering rosette in matching radiator colour is enclosed. Suitable for double-pipe operation, adjustable K (supply) factor from 0.12 to 0.48. The maximum positive operating pressure is 10 bar, the testing positive pressure is 13 bar. The maximum operating temperature is 110°C.  Delivered with dummy and vent plugs (the valve designs are factory-sealed), and a wall mounting set matching the radiator colour, suitable for both horizontal and vertical radiator alignment. Option of installing an electrical heating element.

Performance verification in accordance with DIN EN 442 and OENORM (Austrian standard) EN 442.

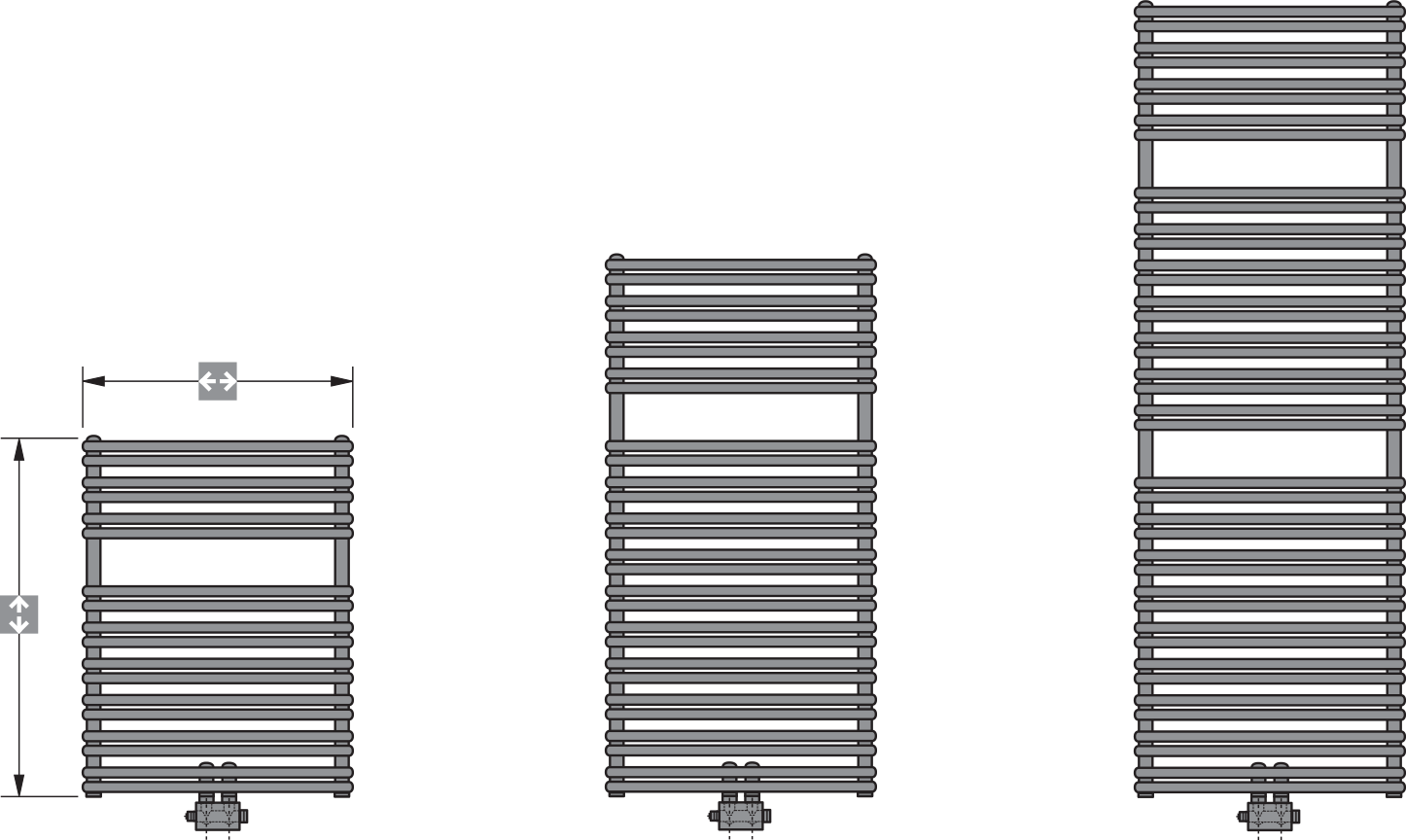

• Dimensions:
  • Height: 796, 1196 or 1756 mm
  • Length : 498, 596, 742 or 887 mm
  • Depth (wall clearance included):
    • for an overall length of 498 mm: 119 - 131 mm
    • for an overall length of 596 mm: 128 - 140 mm
    • for an overall length of 742 mm: 146 - 158 mm
    • for an overall length of 887 mm: 164 - 176 mm
• Connection: 2 x external thread G 3/4" (for valve connection set), 2 x internal thread G 1/2" and 1 x internal thread G 1/4" (for vent plug)
• Coating: Double coat painted in accordance with DIN 55900, suitable for bathroom units, prime coat with top-quality electrophoretic coating, finished with electrostatic powder coating.
