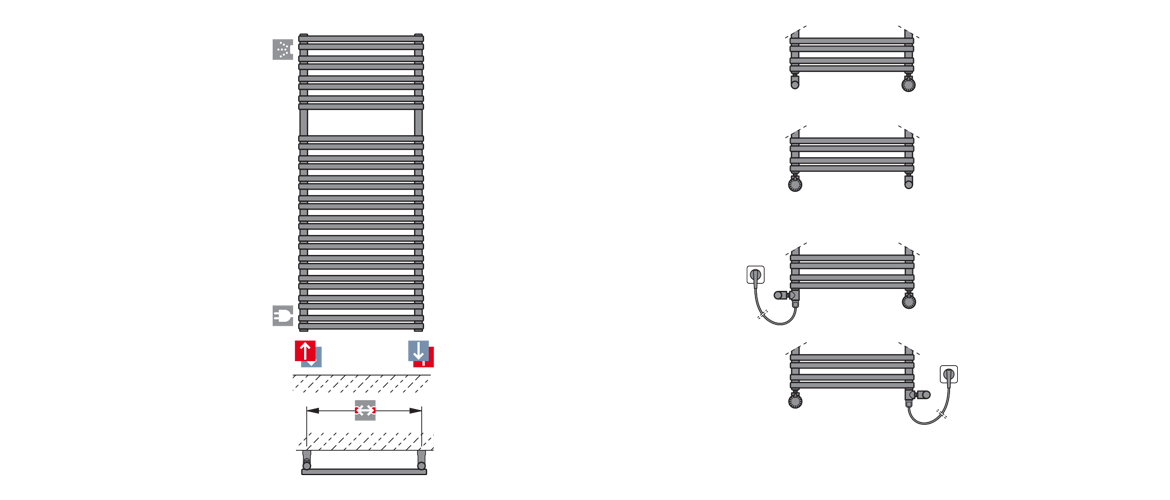

Connection Examples

Flow	Connections: 2 x internal thread G 1/2 and 1 x internal thread G 1/4 (for vent plug)
Return	Test overpressure: 13 bar
Vent plug	Max. positive operating pressure: 10 bar
Electric connection	Max. operating temperature: 110 °C
Boss spacing

A special adapter (chrome-plated) should be used for the electric heating insert with the BAWA Design radiator!

Accessory: PTC Electric Heating Element
BAWA design radiators fitted with an electric heating element can also be used at times when the regular heating system is switched off.

It is absolutely necessary to take account of the power-ratings assigned to the electric heating elements.

Basic Standard Accessories (Included):
• A pivotable vent plug, G 1/4, nickel-plated brass, self-sealing
• A wall mounting set matching the radiator colour
• Fitting aid
• Instruction sheet

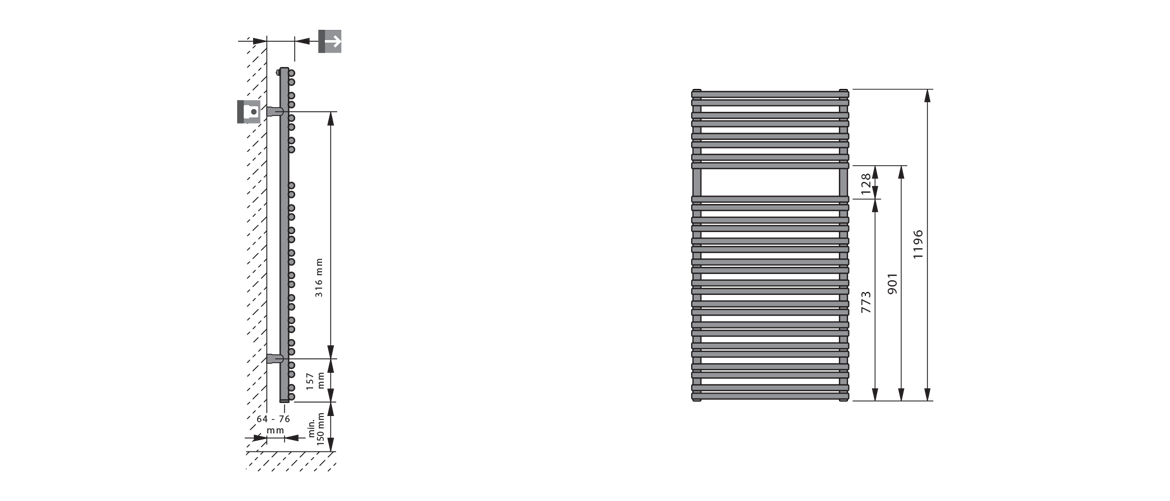

Dimensions [mm]

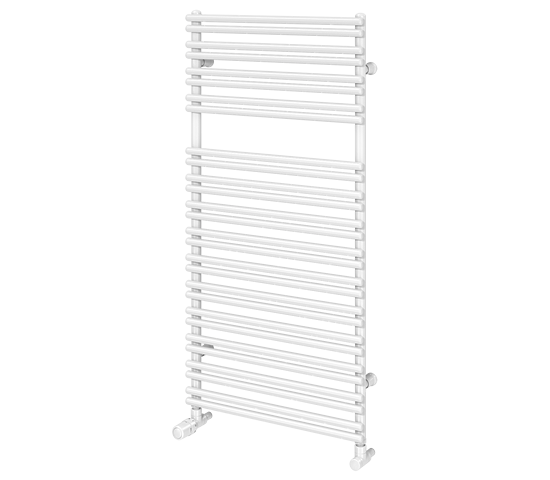

DESIGN RADIATORS BAWA

These design radiators consist of circular or flat steel precision heating- and assembly-pipes with pressure-resistant welding connections (no visible weld seams). All pipe ends sealed by means of special friction welding. Available as standard models or valve models. With the BAWA-VM, the BAWA-T VM an angled connection set with a covering rosette in matching radiator colour is enclosed. Suitable for double-pipe operation, adjustable K (supply) factor from 0.12 to 0.48. The maximum positive operating pressure is 10 bar, the testing positive pressure is 13 bar. The maximum operating temperature is 110°C. Delivered with dummy and vent plugs (the valve designs are factory-sealed), and a wall mounting set matching the radiator colour, suitable for both horizontal and vertical radiator alignment. Option of installing an electrical heating element.

Performance verification in accordance with DIN EN 442 and OENORM (Austrian standard) EN 442.

• Dimensions:
  • Height: 796, 1196 or 1756 mm
  • Length: 500, 600, 750 or 900 mm
  • Depth (wall clearance included): 97 - 109 mm
• Connection: 2 x internal thread G 3/4" (for valve connection set) and 1 x internal thread G 1/4" (for vent plug)
• Coating:
  • Double coat painted in accordance with DIN 55900, suitable for bathroom units, prime coat with top-quality electrophoretic coating
  • Finish: with electrostatic powder coating, or electroplated surface in your choice out of 71 different colours
