ARUN-T

Connection Examples

Flow	Connections: 5 x internal thread G 1/2 and 1 x internal thread G 1/2; blind sleeve for floor fastening
Return	Test overpressure: 13 bar
Vent plug	Max. positive operating pressure: 10 bar
Electric connection	Max. operating temperature: 110 °C
Boss spacing

Accessory: PTC Electric Heating Element
ARUN-T radiators fitted with an electric heating element can also be used at times when the regular heating system is switched off.

It is absolutely necessary to take account of the power-ratings assigned to the electric heating elements.

Basic Standard Accessories (Included):
• A pivotable vent plug, G 1/2, and two dummy plugs, G 1/2, nickel-plated brass, self-sealing
• A wall and floor fastening set matching the radiator colour
• Fitting aid
• Instruction sheet

Dimensions [mm]

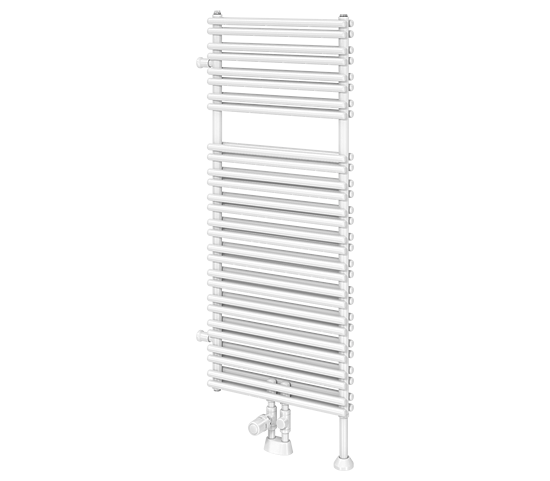

DESIGN RADIATORS ARUN-T

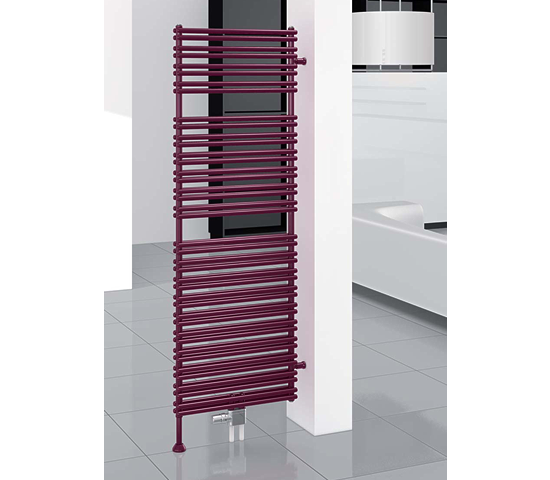

These design radiators consist of circular or flat steel precision heating and assembly-pipes with pressure-resistant welding connections (no visible weld seams). All pipe ends sealed by means of special friction welding. Available as standard models or valve models. The maximum positive operating pressure is 10 bar, the testing positive pressure is 13 bar. The maximum operating temperature is 110°C. Delivered with dummy and vent plugs (the valve designs are factory-sealed), and a wall mounting set matching the radiator colour, suitable for both horizontal and vertical radiator alignment (with the ARUN-T, used as a partition, a floor fastening set is added). Option of installing an electrical heating element.

Performance verification in accordance with DIN EN 442 and OENORM (Austrian standard) EN 442.

• Dimensions:
  • Height: 1194, 1754 or 2154 mm
  • Length: 500, 600, 750 or 900 mm
  • Depth (wall clearance included):
    • for an overall length of 500: 544 - 556 mm
    • for an overall length of 600: 644 - 656 mm
    • for an overall length of 750: 794 - 806 mm
    • for an overall length of 900: 944 - 956 mm
• Connection: 5 x internal thread G 1/2" and 1 x internal thread G 1/4" (for vent plug)
• Coating:
  • Double coat painted in accordance with DIN 55900, suitable for bathroom units, prime coat with top-quality electrophoretic coating, finished with electrostatic powder coating, or electroplated surface
  • Finish: with electrostatic powder coating, or electroplated surface in your choice out of 71 different colours
