Balance and Control Valves
Precision Flow Control for Efficient Heating, Cooling & Potable Systems
The complete range of NexusValve includes all types of static and dynamic balancing valves, differential pressure regulators and pre-adjustable lockable ball valves from DN15 to> DN300. The innovative NexusValve technology makes efficient installation and easy hydraulic balancing possible. Optimised valve construction and coordinated partner valves ensure perfect interaction and simplification of maintenance and service in the installation system. Manual pre-setting is possible due to the effective measurement and flow rate adjustment of the compact NexusValve measuring computer.
NexusValve Fluctus
The NexusValve Fluctus (Fixed Orificed Regulation Valve (FODRV)) is a combined static circuit control valve and shut-off valve for hot and cold circuits. Measurements are performed via a Venturi nozzle with a fixed Kv value. Installation without stabilising sections; flow rate measurement without entering the pre-setting; shut-off with ball valve. Material: Housing, Venturi spindle, measuring connections: dezincification-resistant brass CW602N; ball / adjusting screw: dezincification-resistant brass CW602N, chrome-plated.
NexusValve Fluctus with fill and drain ball valve/connection for NexusValve Passim
The NexusValve Fluctus (Fixed Orificed Regulation Valve (FODRV)) is a combined static circuit control valve and shut-off valve for hot and cold circuits. Measurements are performed via the Fluctus nozzle with a fixed Kv value. Installation without stabilising sections; flow rate measurement without specifying the valve setting; shut-off with a ball valve. Material: Housing, Fluctus spindle, measuring connections: dezincification-resistant brass CW602N; ball / adjusting screw: dezincification-resistant brass CW602N, chrome-plated.
- Connection for NexusValve Passim (Differential Pressure Control Valve (DPCV)).
NexusValve Fluctus with flange connection and manual gear
NexusValve Fluctus with flange connection and manual gear is a combined static circuit control valve and shut-off valve for hot and cold circuits. Measurement in a Venturi nozzle with a fixed Kv value. Flow rate measurement without specifying the pre-adjustment. Venturi measuring tube ST 37.0, surface-treated. Flange-mounted butterfly valve control with manual gear and MemoryStop. Measuring boss brass dezincification resistant.
NexusValve Fluctus
NexusValve Fluctus with fill and drain ball valve/connection for NexusValve Passim
NexusValve Fluctus with flange connection and manual gear
NexusValve Vertex
NexusValve Vertex (Variable Orifice Regulation Valve (VODRV)) is a combined circuit control valve and shut-off valve for hot and cold circuits. Measurement in a continuously adjustable opening with a variable Kv value. No specified direction of flow, measurement/adjustment/shut-off possible in both directions. Housing of dezincification-resistant brass CW602N. Ball/adjusting screw: dezincification-resistant brass CW602N chrome-plated, shut-off with ball valve, measuring connections: dezincification-resistant brass CW602N, O-ring EPDM.
NexusValve Vertex with fill and drain ball valve/connection for NexusValve Passim
NexusValve Vertex (Variable Orifice Regulation Valve (VODRV)) is a combined circuit control valve and shut-off valve for hot and cold circuits. Measurement in a continuously adjustable opening with a variable Kv value. No specified direction of flow, measurement/adjustment/shut-off possible in both directions. Housing of dezincification-resistant brass CW602N. Ball / adjusting screw: dezincification-resistant brass CW602N chrome-plated, shut-off with ball valve, measuring connections: dezincification-resistant brass CW602N, O-ring EPDM.
NexusValve Vertex
NexusValve Vertex with fill and drain ball valve/connection for NexusValve Passim
NexusValve Passim - without fill and drain ball valve
Automatic differential pressure regulator (Differential Pressure Control Valve (DPCV)) with adjustable differential pressure for heating and cooling systems. Shut off without making changes to the pre-adjusted settings. Differential pressure can be adjusted using pre-adjustment. Monting in the return line, without stabilising sections. Including a 1.5 m capillary tube with ½" to the flow line. Housing, base, cone, mechanical parts: dezincification-resistant brass CW602N, stainless steel spring, seal and diaphragm EPDM, shut-off PPS
NexusValve Passim - with fill and drain ball valve
Automatic differential pressure regulator (Differential Pressure Control Valve (DPCV)) with adjustable differential pressure for heating and cooling systems. Shut off without making changes to the pre-adjusted settings. Differential pressure can be adjusted using pre-adjustment or with a measuring computer (with optional partner valve). Monting in the return line, without stabilising sections. Including 1 m capillary tube with ½" to the flow line. Housing DN 15-32 and DN 40: dezincification-resistant brass CW602N, DN 50: EN-GJL-250 (GG25). Base, cone, mechanical parts: dezincification-resistant brass CW602N, stainless steel spring, seal and diaphragm EPDM, shut-off PPS.
NexusValve Passim DN 65 - DN 80
Automatic differential pressure regulator (differential pressure control valve (DPCV)) with continuously adjustable differential pressure for heating and cooling systems.
Differential pressure adjustable via presetting, installation in flow or return, delivery with 2 capillary lines, connection flange PN16, housing nodular cast iron EN-GJS-400-15, seat, cone and spindle and spring stainless steel, seals and membrane EPDM.
NexusValve Passim - without fill and drain ball valve
NexusValve Passim - with fill and drain ball valve
NexusValve Passim DN 65 - DN 80
Thermal control valve (ZIV) for domestic water
for use in circulation piping in accordance with DVGW Worksheet W551 and W553
The product:
- Automatic thermal disinfection in the temperature range T > 65 °C
- Flow rate is manually adjustable, corresponding tothe diagram
- Fittings DIN-DVGW tested
The advantages:
- Parts in contact with the medium are made of corrosion-resistant red brass
- Only two operating levels: Drainage device and thermometer mounting combined
- Including thermometer and insulation (optionally without)
- Pre-set, control, shut-off with fittings
- Permitted operating pressure: PB 10 bar
- Max. operating temperature: TB 90 °C

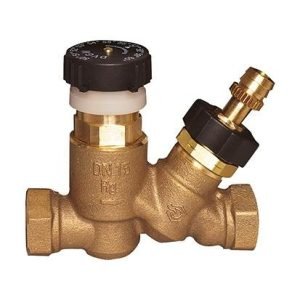

NexusValve TW for domestic water
The NexusValve BC3 instrument is designed for hydraulic balancing of heating and cooling systems. It allows measuring static pressure, differential pressures and flow in the said systems. Using the differential pressure measured by the measuring component (balancing valve or measuring orifice). The application corrects the calculated flow also for anti-freeze mixes in cooling systems. The flow can be measured in all branches of the whole hydraulic system, and the whole system can be balanced.
The NexusValve BC3 App is available for Android and iOS.
- Ergonomic, user-friendly measuring device.
- Fully differential pressure sensor with 24-bit pressure processing.
- Digital compensation of temperature effects and the pressure sensor nonlinearity.
- User application for mobile devices running the Android operating system (7.0 +) / iOS.
- Wireless data transfer.
- Correction of flow calculation based on antifreeze liquid characteristics.
- Easy balancing valve selection from a photographic menu.
- Project records with a capacity of up to 2000 recordings.
NexusValve Flowmeter BC3
